Application:
FEP wire has excellent corrosion resistance, oil resistance, strong acid resistance, strong alkali resistance, strong oxidant, etc. Excellent electrical insulation performance, high voltage resistance, high frequency loss, no moisture absorption, insulation resistance; Excellent fire resistance, aging resistance, long service life.
Electronic industry,FEP wire can be used for temperature compensation wire, low temperature wire, high temperature heating wire, aging wire and flame retardant wire; In the household electric appliance industry, it can be used for the internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, electric rice bun, electronic hot water bottle, electric heater, electric oven, electric frying pan, lamps and lanterns, etc.
Product features:
Wear resistant, scratch resistant, easy to rip off, high and low temperature resistant, anti-aging, corrosion resistant, anti-interference
Cable structure:
|
Insulation |
FEP,PFA, PTFE, ETFE Insulated |
|
Number Core |
Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores |
|
Size |
0.05mm2, 0.2mm2, 0.5mm2, 1mm2, 2mm2, 3mm2, 5mm2,8mm2 |
|
Conductor Type |
Solid core or stranded |
|
Conductor Materials |
Silver-plated copper or tinned copper wire |
|
Shielding |
Tinned plated or silver plated copper braided |
|
Temperature range |
-65C~+200ºC |
|
Rated voltage |
600V or Below |
|
Color |
black,brown,red,orange,yellow,green,blue,grey,white,violet |
Type and Name:
| Type | Name |
| AF-200 | Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 | Tin Plated Copper Core FEP Insulation Install Wire |

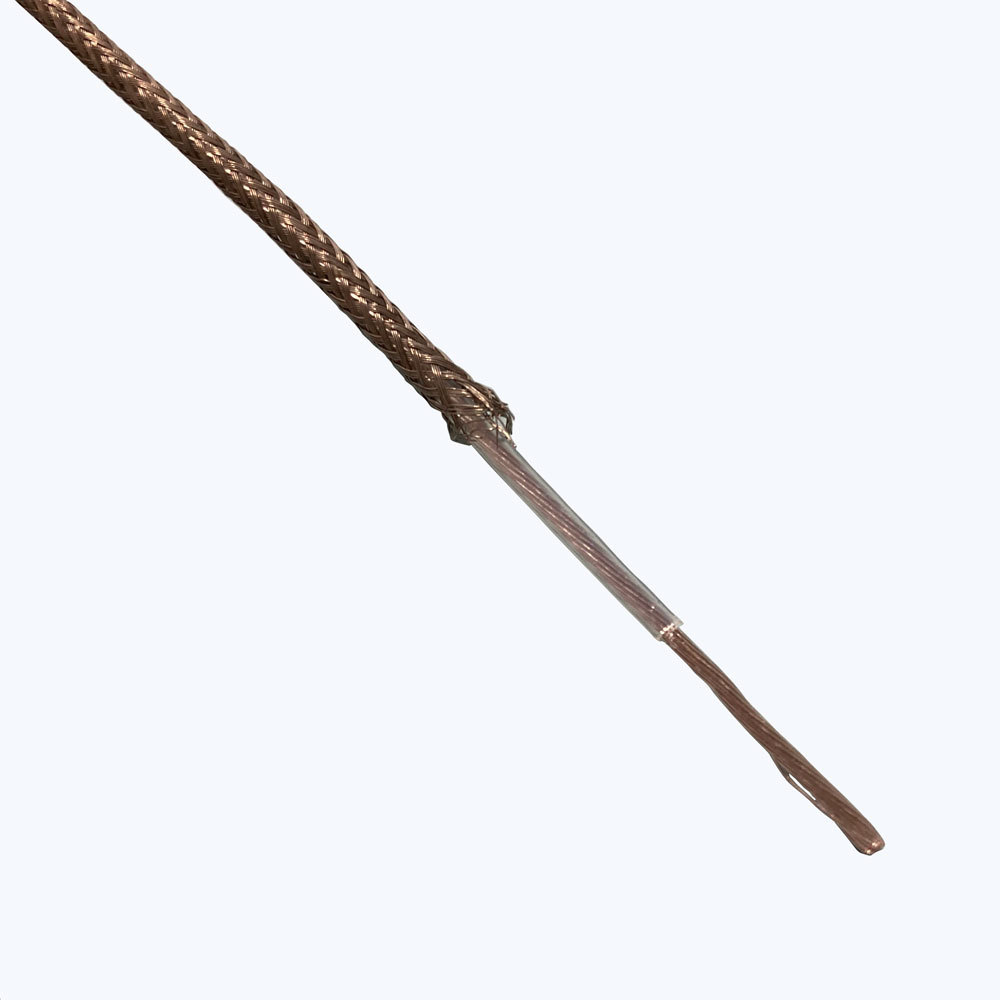

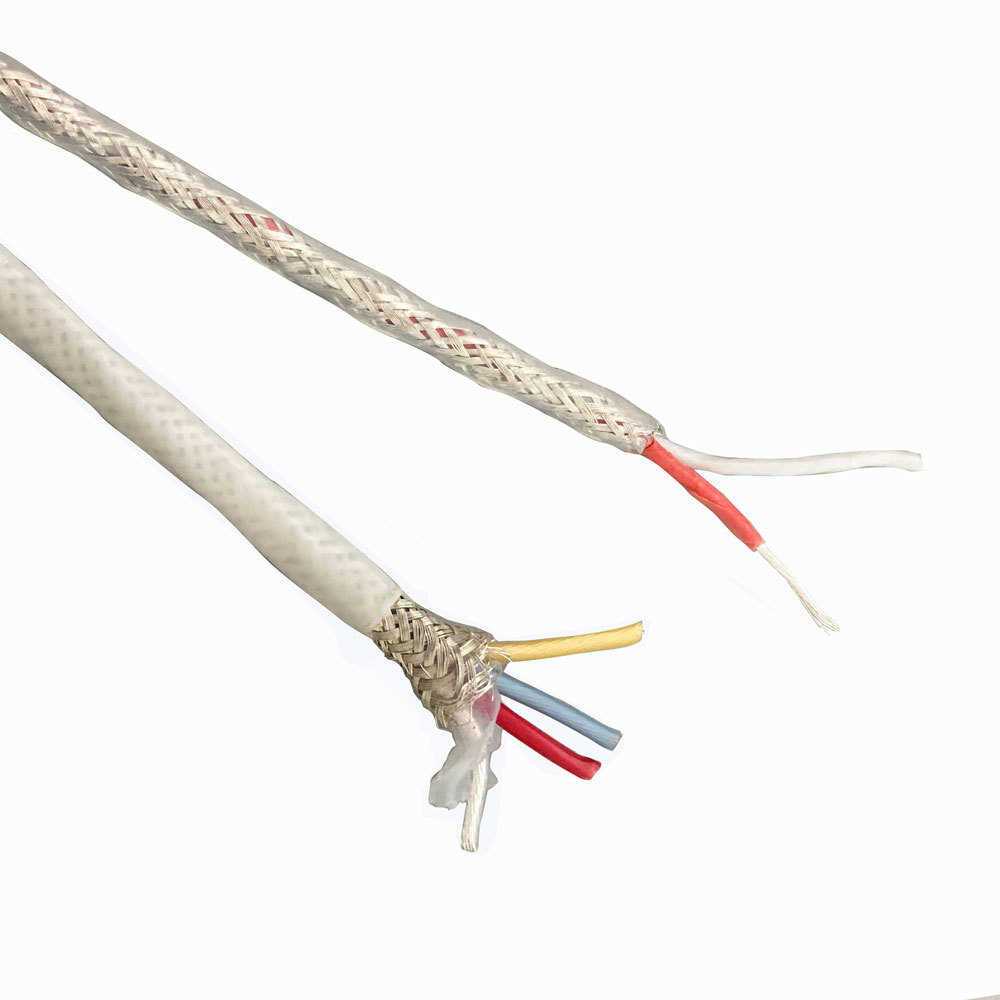

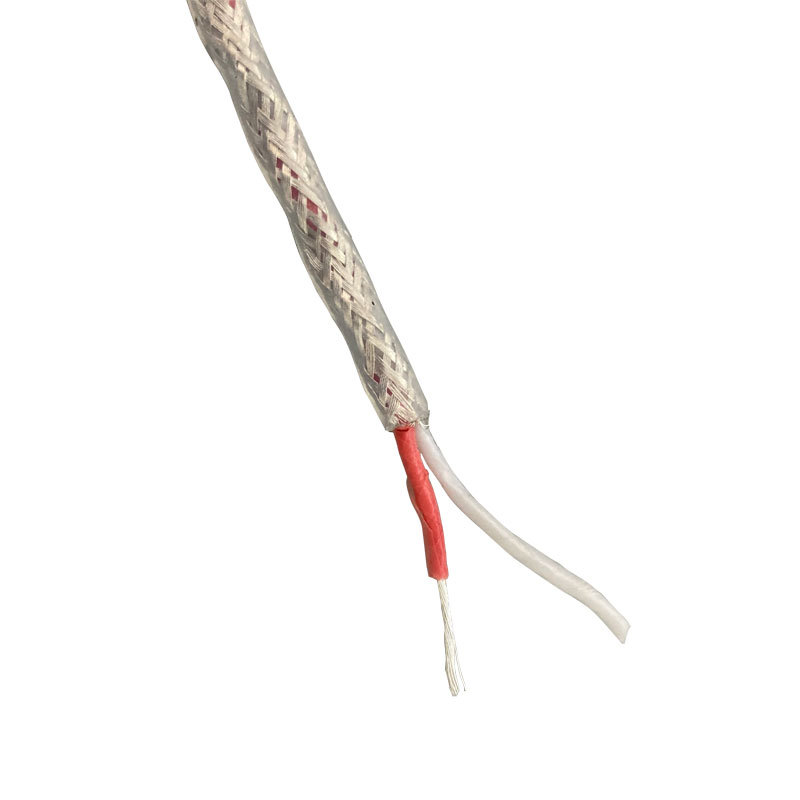

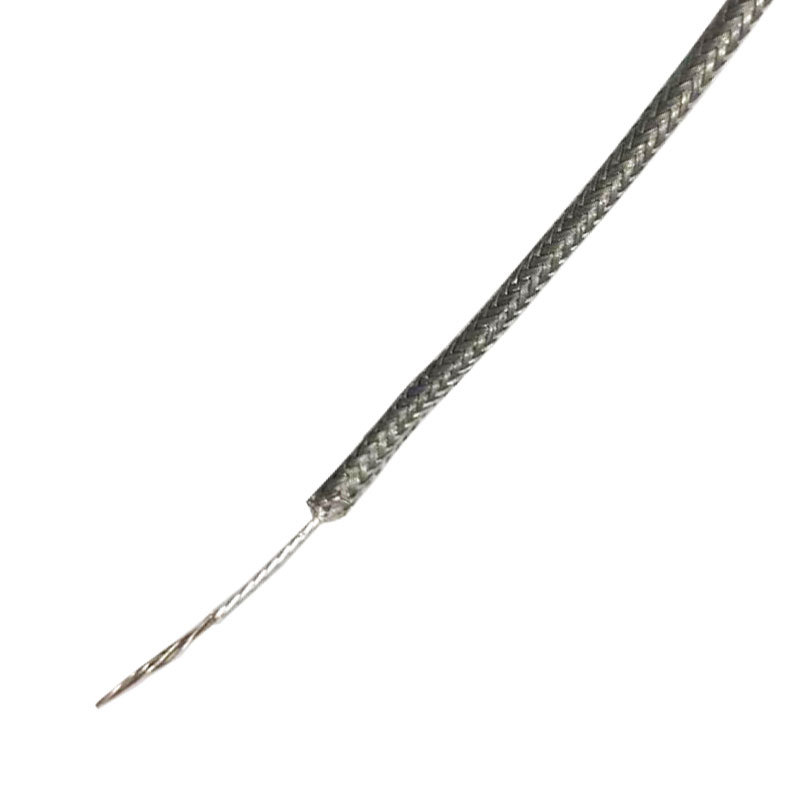

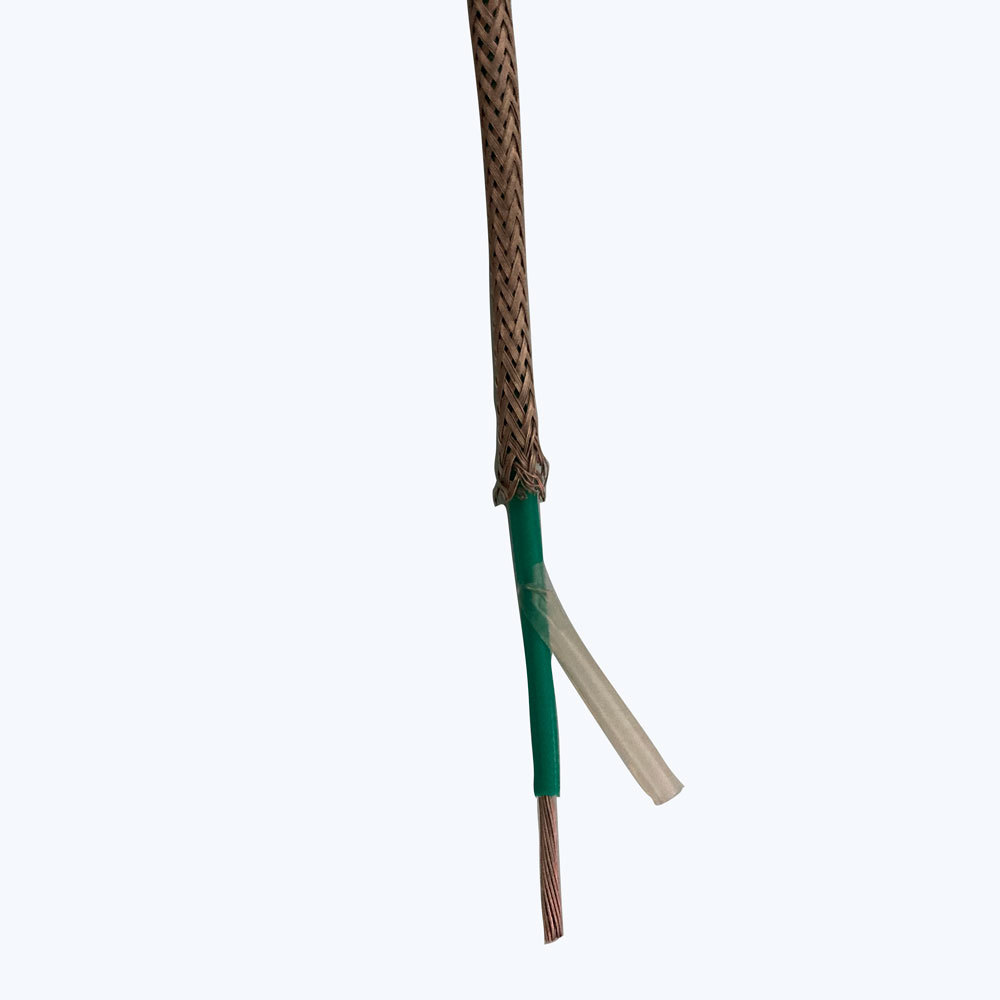

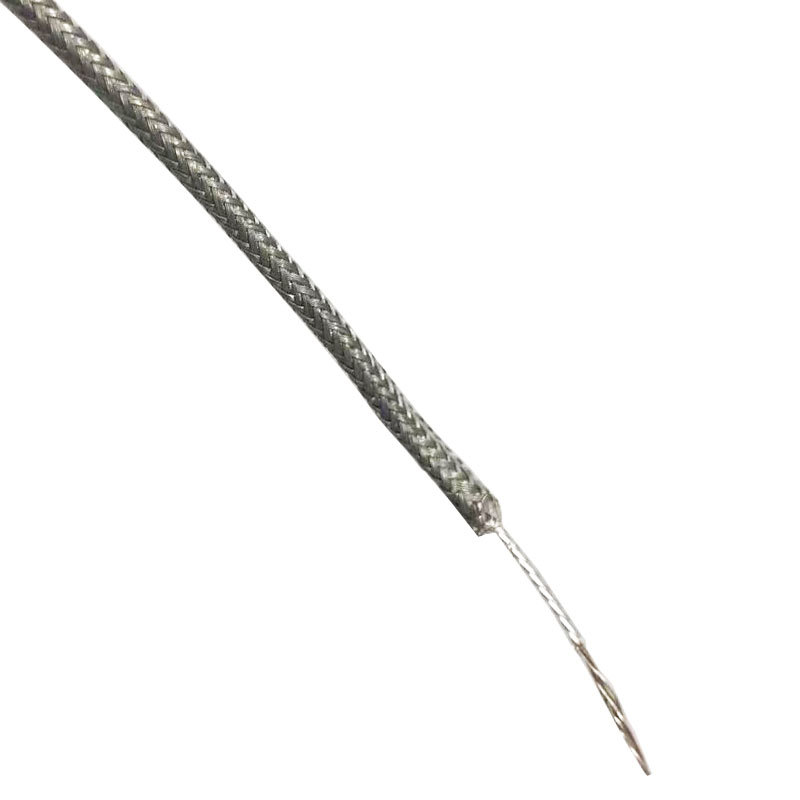

| AFP-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
Cable structures:
| Wire gauge | Cross-section area | Conductor structure | Max. OD of cable | |||
| AF-200 AF-200-1 |
AFP-200 | |||||
| AWG | mm2 | mm | 250V | 600V | 250V | 600V |
| 36AWG | 0.013mm2 | 7/0.05mm | 0.65 | 0.85 | 1.1 | 1.3 |
| 32AWG | 0.035mm2 | 7/0.08mm | 0.75 | 0.95 | 1.2 | 1.4 |
| 30AWG | 0.05mm2 | 7/0.10mm | 0.85 | 1.05 | 1.35 | 1.6 |
| 28AWG | 0.07mm2 | 7/0.12mm | 0.9 | 1.1 | 1.4 | 1.65 |
| - | 0.1mm2 | 7/0.14mm | 1 | 1.2 | 1.55 | 1.75 |
| 26AWG | 0.14mm2 | 7/0.16mm | 1.1 | 1.3 | 1.65 | 1.95 |
| 24AWG | 0.2mm2 | 19/0.12mm | 1.2 | 1.4 | 1.75 | 1.98 |
| - | 0.3mm2 | 7/0.23mm | 1.25 | 1.48 | 1.8 | 2.05 |
| 22AWG | 0.35/0.40mm2 | 19/0.16mm | 1.4 | 1.6 | 1.95 | 2.2 |
| 20AWG | 0.5mm2 | 19/0.18mm | 1.6 | 1.8 | 2.2 | 2.4 |
| - | 0.6mm2 | 19/0.20mm | 1.75 | 1.98 | 2.3 | 2.5 |
| - | 0.75/0.80mm2 | 19/0.23mm | 1.8 | 2.1 | 2.4 | 2.6 |
| 18AWG | 1mm2 | 19/0.26mm | 2 | 2.2 | 2.6 | 2.9 |
| 16AWG | 1.2mm2 | 19/0.28mm | 2.2 | 2.4 | 2.8 | 3.1 |
| - | 1.5mm2 | 19/0.32mm | 2.4 | 2.6 | 3.1 | 3.3 |
| 14AWG | 2mm2 | 19/0.37mm | 2.7 | 2.9 | 3.4 | 3.6 |
| - | 2.5mm2 | 37/0.30mm | 3.4 | 3.6 | 4.2 | 4.4 |
| 12AWG | 3mm2 | 37/0.32mm | 3.6 | 3.8 | 4.4 | 4.6 |
| - | 4mm2 | 37/0.37mm | 4 | 4.2 | 4.8 | 5.1 |
| 10AWG | 5mm2 | 37/0.41mm | 4.5 | 4.7 | 5.3 | 5.6 |
| - | 6mm2 | 37/0.45mm | 4.8 | 5 | 5.7 | 5.9 |
| 8AWG | 8mm2 | 133/0.28mm | 6 | 6.5 | 6.8 | 7.3 |
Noted:FEP wire specification and core no. are not limited to above regulation,they could be customized.
