22 AWG Tinned Stranded Copper Tefzel Coated Wire with High Temperature Resistance

500
MOQ
22 AWG Tinned Stranded Copper Tefzel Coated Wire with High Temperature Resistance
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
도체 재료: 주석 도금 구리, 주석 도금 구리
지름: 22AWG, 20AWG, 24AWG, 18AWG, 16AWG
단열재: ETFE
정격전압: AC 600V 또는 그 이하
도체 유형: 좌초, 좌초 또는 단단한
모양: 둥근
단일 와이어 크기: 1.2mm, 1.0mm, 0.5mm, 0.3mm
온도 범위: -65℃~+150℃
절연 두께: 0.15mm, 0.2mm, 0.33mm
최대 도체 저항: 239Ω/Km, 150Ω/Km, 94.2Ω/Km, 32.4Ω/Km, 20.4Ω/Km, 16.6Ω/Km, 10Ω/Km, 6.63Ω/Km, 4.13Ω/Km
섹션 영역: 0.08mm2, 0.14mm2, 0.2mm2, 0.4/0.3mm2, 0.6/0.5mm2, 1mm2, 1.2mm2, 2mm2, 3mm2, 5mm2
지휘자 구조: 7/0.12, 7/0.16, 7/0.2, 19/0.16, 19/0.2, 19/0.26, 19/0.28, 19/0.36, 37/0.32, 37/0.4
참조 OD: 0.66mm, 0.78mm, 0.9mm, 1.1mm, 1.3mm, 1.7mm, 1.8mm, 2.46mm, 2.9mm, 3.46mm

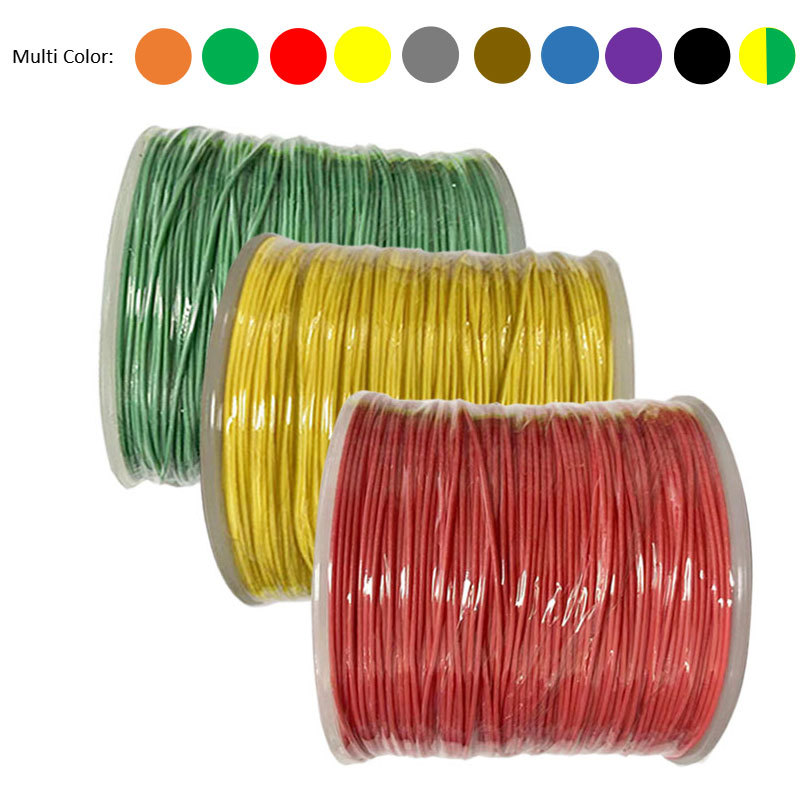

색상: 노란색, 빨간색, 주황색, 검정색, 녹색, 보라색, 파란색
숫자 코어: 단일 코어 또는 다중 코어
강조하다:

22 AWG ETFE Insulated Wire

,

Tinned Stranded Copper Tefzel Coated Wire

,

High Temperature Resistance Wire
기본 정보
원래 장소: 중국 후난성
브랜드 이름: Sanco cable
모델 번호: ETFE 시리즈
결제 및 배송 조건
제품 설명

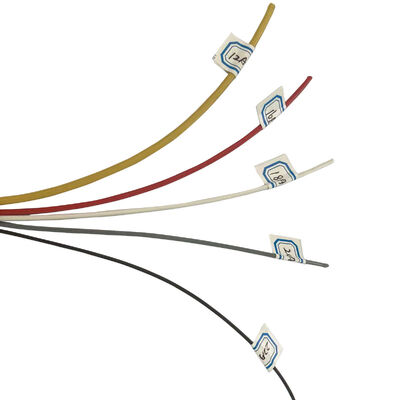

22 Gauge Tinned Stranded Copper Tefzel Coated Wire
ETFE (ethylene tetrafluoroethylene) is a high-performance fluoropolymer used for electrical wire insulation. ETFE insulated wires deliver exceptional electrical properties including high temperature resistance, superior dielectric strength, low friction coefficient, and outstanding chemical resistance.
Applications
These premium wires are engineered for demanding applications across aerospace, automotive, electronics, and telecommunications industries where exposure to high temperatures, corrosive chemicals, and mechanical stress is common.
Key Advantages
  • High temperature resistance: Withstands temperatures up to 150°C (302°F) without degradation
  • Chemical resistance: Highly resistant to fuels, acids, solvents, and other harsh chemicals
  • Excellent electrical properties: Superior dielectric strength and low dielectric constant for efficient signal transmission
  • Mechanical strength: Durable construction resistant to abrasion, impact, and mechanical stress
  • Lightweight and flexible: Easy installation and routing in complex applications
Cable Construction and Specifications
Conductor Materials Tinned Plated Copper or Silver Plated Copper
Conductor Type Stranded
Number Core Single Core or Multiple Cores
Insulation ETFE, FEP, PTFE, PFA Insulated
Rated Voltage AC 600V and Below
Rated Temperature -65°C to +150°C
Color Red, White, Black, Blue, Green, Yellow, Brown, Yellow/Green
22 AWG Tinned Stranded Copper Tefzel Coated Wire with High Temperature Resistance 0
Wire Gauge Section Area (mm²) Conductor Construction (piece/diameter mm) Insulation Thickness (mm) Reference OD (mm) Max. Conductor Resistance at 20℃ (Ω/Km)
28 AWG 0.08 7/0.12 0.15 0.66 239
26 AWG 0.14 7/0.16 0.15 0.78 239
24 AWG 0.2 7/0.2 0.15 0.9 150
22 AWG 0.4/0.3 19/0.16 0.15 1.1 94.2
20 AWG 0.6/0.5 19/0.2 0.15 1.3 32.4
18 AWG 1 19/0.26 0.2 1.7 20.4
16 AWG 1.2 19/0.28 0.2 1.8 16.6
14 AWG 2 19/0.36 0.33 2.46 10
12 AWG 3 37/0.32 0.33 2.9 6.63
10 AWG 5 37/0.4 0.33 3.46 4.13
Company Information
22 AWG Tinned Stranded Copper Tefzel Coated Wire with High Temperature Resistance 1
Xiangtan Shenzhou Special Cable Co., LTD is a premier wire and cable supplier to China's aerospace and military sectors with 21 years of industry experience. Our proprietary cable compound production ensures superior quality and competitive pricing for global customers. Our product portfolio includes high temperature wires, PTFE cable, FEP cable, PFA wire, ETFE cable, fluoroplastic cables, hook up wire, electronic cable, and power cable. We maintain advanced production facilities and integrated management systems, collaborating with universities and research institutes to provide custom cable solutions.
22 AWG Tinned Stranded Copper Tefzel Coated Wire with High Temperature Resistance 2
Exhibition & Customer Visits
22 AWG Tinned Stranded Copper Tefzel Coated Wire with High Temperature Resistance 3
We actively participate in international exhibitions including Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, and Power-Gen India. Our products are exported worldwide to the US, Venezuela, India, Vietnam, Bangladesh, Africa, and other countries. We welcomed the delegation from Ezeagu Government of Nigeria to our factory in 2017, strengthening our long-term partnership.
Certifications and Honors
22 AWG Tinned Stranded Copper Tefzel Coated Wire with High Temperature Resistance 4
  • Selected for China's manned space flight project development, construction, and related cooperation for Shenzhou 7 mission success
  • Participated in China's manned space project development, construction, and testing for first manned flight mission
  • Collaborated with China Academy of Launch Vehicle Technology on the "Arrow of God" project for China's first astronaut space exploration
Why Choose Us
22 AWG Tinned Stranded Copper Tefzel Coated Wire with High Temperature Resistance 5
As a trusted supplier to China's aerospace and military sectors, customer satisfaction is our primary objective.
Our Services
  • Comprehensive technical consultation before, during, and after sales
  • Free samples and custom design services
  • Comprehensive monitoring and testing during manufacturing
  • 100% free insurance for internal transportation
  • OEM & ODM services available
  • Small order quantities accepted
Packing & Shipping
22 AWG Tinned Stranded Copper Tefzel Coated Wire with High Temperature Resistance 6
We utilize fast international express delivery services including DHL, UPS, FEDEX, TNT, and EMS. Shipping options available by air, sea, or land transportation based on customer requirements.
Frequently Asked Questions
22 AWG Tinned Stranded Copper Tefzel Coated Wire with High Temperature Resistance 7
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in research, development, and sales of military and consumer cable wire and cable compounds. Our facility is located in Hunan Province, China.
What are your company's strengths?
With 21 years of experience as a supplier to China's aerospace and military sectors, our proprietary cable compound production ensures superior quality and competitive pricing.
How do you guarantee your product quality?
Quality is our top priority. We implement strict quality control measures throughout the entire process from design and materials procurement to manufacturing, semi-finished product testing, and final inspection.
What's the warranty of your products?
We provide a comprehensive 1-year warranty service. If products have quality issues, we offer unconditional replacement or return.
How can I get samples?
We accommodate sample orders. For small quantities available in stock, samples are provided free of charge with freight costs covered by the customer.
