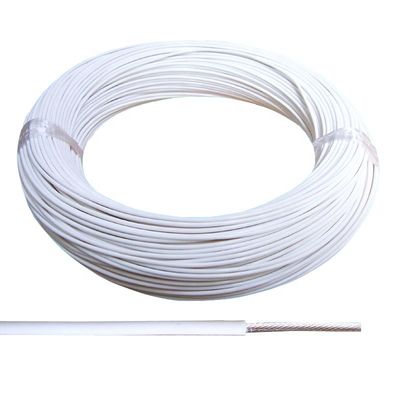

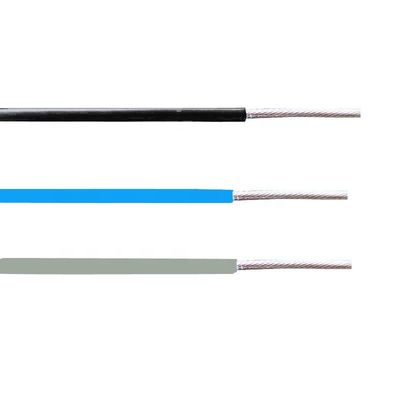

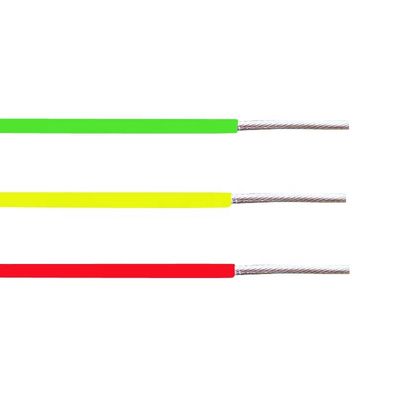

| Insulation | FEP, PFA, PTFE, ETFE |
|---|---|
| Number of Cores | Single Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores |
| Size | 0.05mm² to 8mm² |
| Conductor Type | Solid core or stranded |
| Conductor Materials | Silver-plated copper or tinned copper wire |
| Shielding | Tinned copper wire weave shielded |
| Temperature Range | -65°C to +200°C |
| Rated Voltage | 600V or below |
| Color | Multiple standard colors available |
| Type | Name |
|---|---|
| AF-200 | Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 | Tin Plated Copper Core FEP Insulation Install Wire |
| AFP-200 | Tin/Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 | Tin/Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 | Tin/Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
| Wire Gauge | Cross-section Area | Conductor Structure | Max. OD of Cable |
|---|---|---|---|
| 36AWG | 0.013mm² | 7/0.05mm | 0.65-1.3mm |
| 32AWG | 0.035mm² | 7/0.08mm | 0.75-1.4mm |
| 30AWG | 0.05mm² | 7/0.10mm | 0.85-1.6mm |
| 28AWG | 0.07mm² | 7/0.12mm | 0.9-1.65mm |
| 26AWG | 0.14mm² | 7/0.16mm | 1.1-1.95mm |
| 24AWG | 0.2mm² | 19/0.12mm | 1.2-1.98mm |
| 22AWG | 0.35/0.40mm² | 19/0.16mm | 1.4-2.2mm |
| 20AWG | 0.5mm² | 19/0.18mm | 1.6-2.4mm |
| 18AWG | 1mm² | 19/0.26mm | 2-2.9mm |
| 16AWG | 1.2mm² | 19/0.28mm | 2.2-3.1mm |
| 14AWG | 2mm² | 19/0.37mm | 2.7-3.6mm |
| 12AWG | 3mm² | 37/0.32mm | 3.6-4.6mm |
| 10AWG | 5mm² | 37/0.41mm | 4.5-5.6mm |
| 8AWG | 8mm² | 133/0.28mm | 6-7.3mm |
