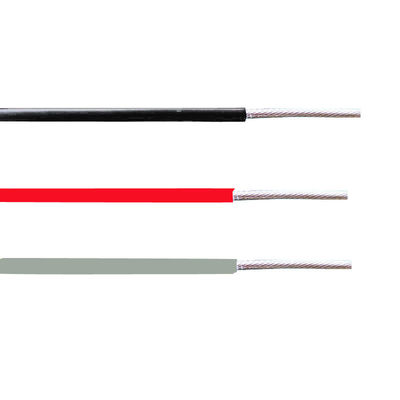

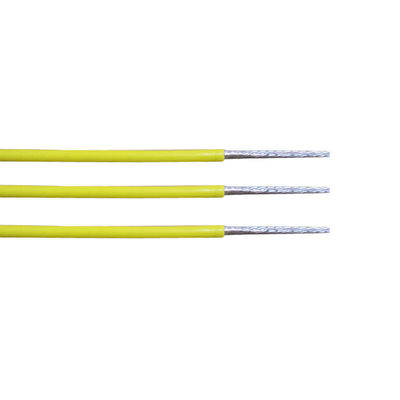

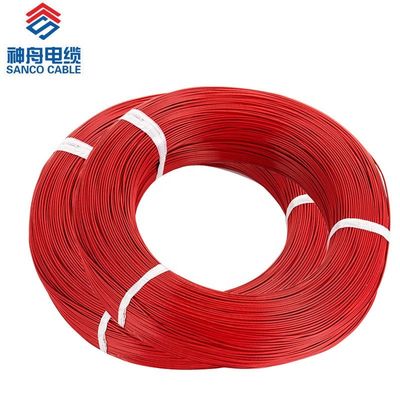

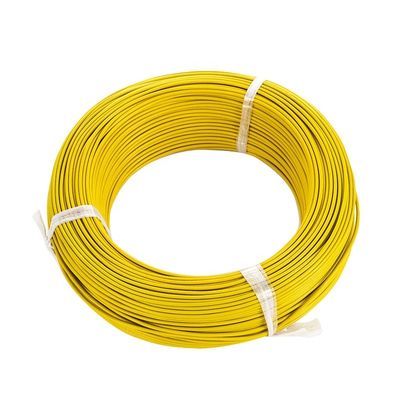

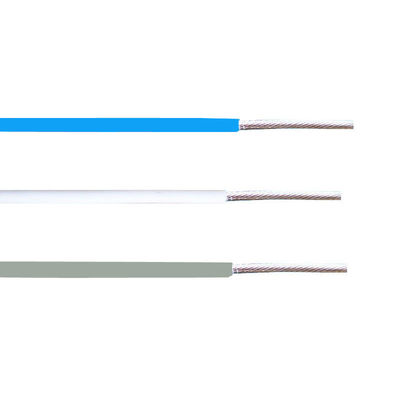

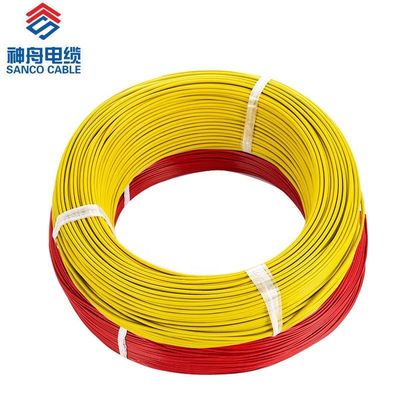

FEP Insulation Wires feature excellent corrosion resistance, oil resistance, and resistance to strong acids, alkalis, and oxidants. They offer superior electrical insulation performance with high voltage resistance, minimal high-frequency loss, moisture resistance, and excellent insulation properties. These wires also provide outstanding fire resistance, aging resistance, and long service life.
Applications include:
| Conductor Materials | Tinned Plated Copper, Silver Plated Copper, Bare Copper |
|---|---|
| Conductor Type | Stranded or Solid |
| Number Core | Single Core or Multiple Cores |
| Insulation | FEP, PTFE, PFA Insulated |
| Rated Voltage | 600V or Below |
| Rated Temperature | -65°C to +200°C |
| Color | White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
| Type | Name |
|---|---|
| AF-200 | Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 | Tin Plated Copper Core FEP Insulation Install Wire |
| AFP-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 | Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
| Wire gauge | Cross-section area | Conductor structure | Max. OD of cable |
|---|
With 21 years of experience, we are a stable wire and cable supplier for China's aerospace and military sectors. Our self-produced cable compounds ensure superior quality and competitive pricing. Main products include:
We have advanced production facilities, integrated management systems, and collaborate with universities and research institutes to provide customized cable solutions.
A: We are a professional manufacturer of military and consumer cable wire and cable compound, located in Hunan Province, China.
A: As a 21-year supplier to China's aerospace and military sectors, we produce our own cable compounds to maintain superior quality and competitive pricing.
A: We implement strict quality control from design and material procurement through manufacturing and final inspection.
A: We provide a 1-year complete warranty with unconditional replacement or return for quality issues.
A: We provide sample orders, with free samples available for small quantities in stock (customer pays freight).
