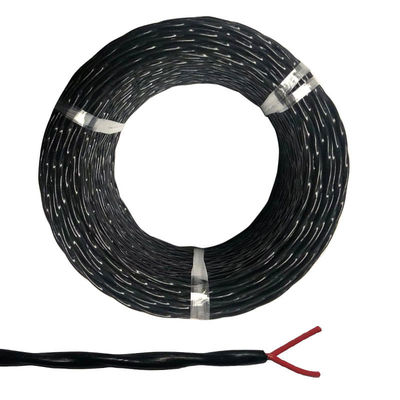

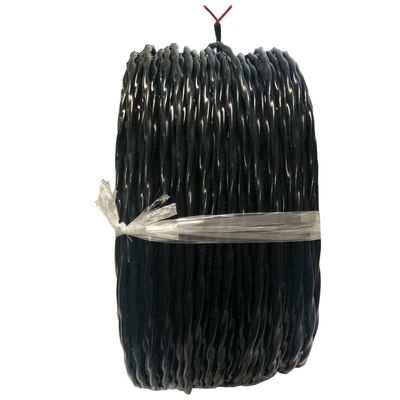

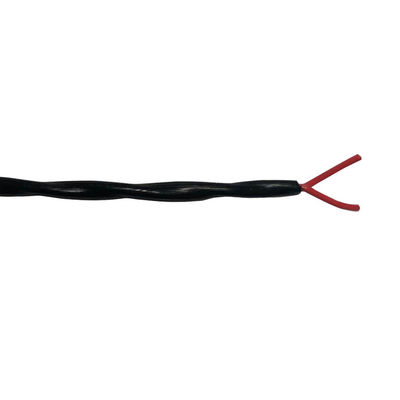

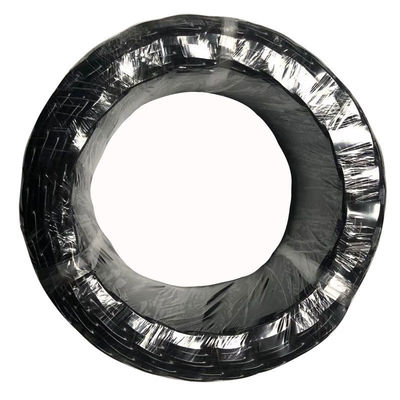

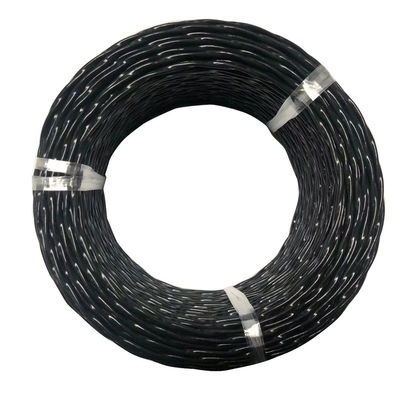

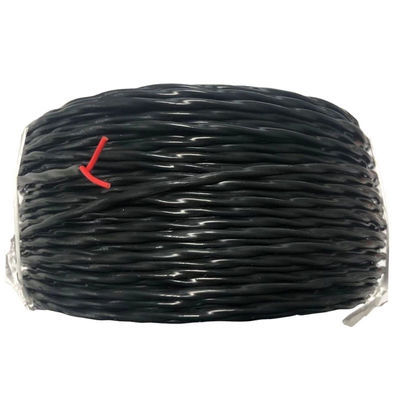

FEP Insulation Fluorineplastic Wires feature excellent corrosion resistance, oil resistance, strong acid/alkali resistance, and oxidation resistance. These cables offer superior electrical insulation performance with high voltage resistance, low frequency loss, moisture resistance, and excellent fire resistance with long service life.
Ideal for electronic industry applications including temperature compensation wires, low/high temperature heating wires, and flame retardant wires. Commonly used in household appliances such as air conditioners, microwave ovens, electric ovens, lamps, and other heating appliances.
| Specification | Details |
|---|---|
| Conductor Materials | Tinned Plated Copper or Silver Plated Copper |
| Conductor Type | Stranded or Solid |
| Number of Cores | 1 Core, 2 Cores, 3 Cores, 4 Cores (customizable) |
| Insulation | FEP, PFA, PTFE, ETFE Insulated |
| Sheath | FEP, PFA, PTFE, ETFE |
| Rated Voltage | 600V or Below |
| Rated Temperature | -65°C to +200°C |
| Color Options | White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
| Type | Name |
|---|---|
| AF-200 | Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 | Tin Plated Copper Core FEP Insulation Install Wire |
| AFP-200 | Tin/Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 | Tin/Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 | Tin/Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
| Wire Gauge | Cross-section Area | Conductor Structure | Max. OD of Cable |
|---|---|---|---|
| 36AWG | 0.013mm² | 7/0.05 | 0.65-1.3mm |
| 22AWG | 0.35/0.40mm² | 19/0.16 | 1.4-2.2mm |
| 8AWG | 8mm² | 133/0.28 | 6.0-7.3mm |
Note: FEP high temperature lead wire specifications and core numbers can be customized.
Xiangtan Shenzhou Special Cable Co., LTD is a leading wire and cable supplier for China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, ensuring superior quality and competitive pricing.
Our product range includes High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, and Power cable. We maintain advanced production facilities and collaborate with universities and research institutes to offer customized cable solutions.
A: We are a professional manufacturer of military and consumer cable wire and cable compound, located in Hunan Province, China.
A: We are a stable supplier for China's aerospace and military with 21 years experience, producing our own cable compounds for superior quality.
