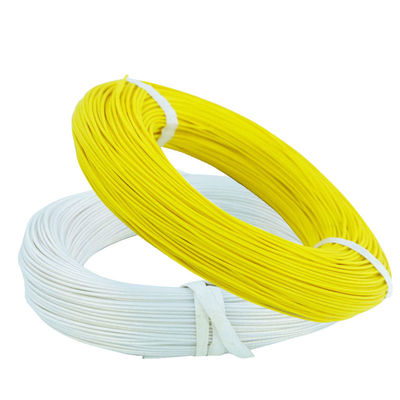

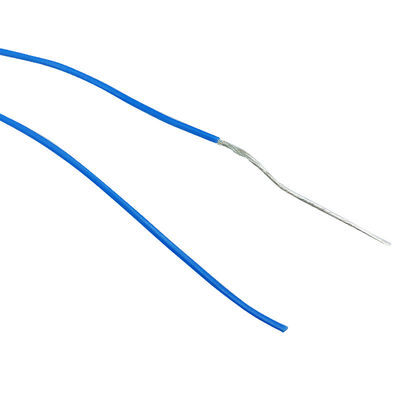

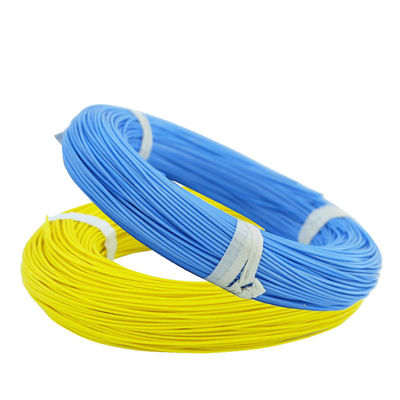

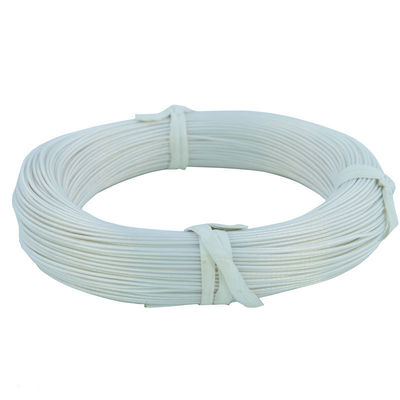

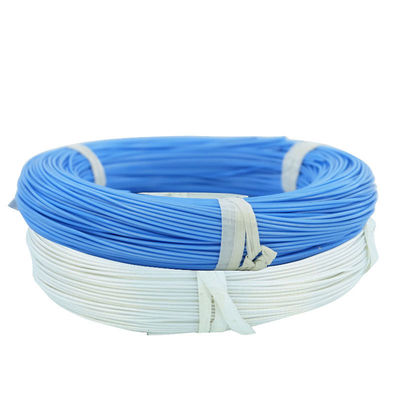

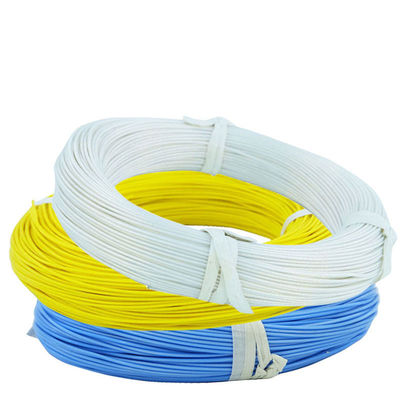

PTFE (polytetrafluoroethylene) extruded wire is manufactured through an extrusion process, offering excellent electrical insulation properties ideal for high-temperature and harsh environment applications. Commonly used in aerospace, automotive, and electrical industries.
Red, yellow, blue, green, white, black, orange, purple, brown
| Type | Name |
|---|---|
| AFR-200 | Bare Copper wire conductor PTFE film insulated lead wire |
| AFR-250 | Silver plated copper wire conductor PTFE film insulated lead wire |
| AFP | Bare Copper wire conductor PTFE film insulated screen lead wire |
| AFP-1 | Silver plated copper wire conductor PTFE film insulated screen lead wire |
| AFRP-200 | Bare Copper wire conductor PTFE film insulation shield lead wire |
| AFRP-250 | Silver plated wire copper conductor PTFE film insulation shield lead wire |
| AFRPF-250, AFPF | Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire |
| Nominal Section (mm²) | Conductor Construction (No/mm) | Insulation Thickness (mm) | Outer Diameter (mm) | D.C. conductor resistance at 20ºC(Ω/km) |
|---|---|---|---|---|
| 0.05 | 10/0.08 | 0.3 | 0.9 | 383 | 370 |
| 0.06 | 7/0.10 | 0.3 | 0.9 | 348 | 339 |
| 0.08 | 7/0.12 | 0.3 | 0.96 | 286 | 280 |
| 0.1 | 7/0.14 | 0.3 | 1.02 | 157 | 150 |
| 0.12 | 7/0.15 30/0.07 | 0.3 | 1.05 | 152 | 145 |
| 0.14 | 7/0.16 19/0.10 | 0.3 | 1.08 | 136 | 130 |
| 0.15 | 30/0.08 | 0.3 | 1.1 | 111 | 105 |
| 0.2 | 7/0.02 19/0.12 | 0.3 | 1.2 | 87 | 82 |
| 0.35 | 19/0.16 | 0.3 | 1.4 | 57 | 54 |
| 0.5 | 19/0.18 | 0.3 | 1.5 | 40 | 37.5 |
| 0.8 | 19/0.23 | 0.32 | 1.79 | 24 | 23 |
| 1 | 19/0.26 | 0.35 | 2 | 21 | 20 |
| 1.2 | 19/0.28 | 0.45 | 2.3 | 19 | 18 |
| 1.5 | 19/0.32 | 0.45 | 2.5 | 13 | 12 |
| 2 | 19/0.37 | 0.45 | 2.75 | 10 | 9 |
| 2.5 | 37/0.30 | 0.55 | 3.2 | 8 | 7 |
| 3 | 37/0.32 | 0.68 | 3.6 | 6.8 | 6.4 |
| Type | High-Temp 0.5mm AF250 PTFE Electric Cable Wire |
|---|---|
| Size | 0.5mm², 0.8mm², 1mm², 1.5mm², 2mm², 2.5mm² |
| Conductor Materials | Silver Plated, Tinned Plated or Bare Copper |
| Conductor Type | Stranded or Solid |
| Insulation | ETFE, FEP, PFA, PTFE |
| Rated Voltage | 600V or Lower |
| Temperature Range | 250°C |
| Color | White, Yellow, Blue, Black, Red, Green |
A stable wire and cable supplier for China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, ensuring superior quality and competitive pricing. Our product range includes High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, and Power cable. We maintain advanced production facilities and integrated management systems, collaborating with universities and research institutes to offer customized cable solutions.
We are a professional manufacturer, researching, developing and selling military and consumer cable wire and cable compounds. The company is located in Hunan Province, China.
We are a stable wire and cable supplier for China's aerospace and military with 21 years experience. We produce our own cable compounds, which allows us to maintain superior quality and competitive offers.
Quality is our priority. We implement strict quality control from design and materials procurement through manufacturing and final product inspection to ensure consistent quality.
We provide 1 year complete warranty service. If products have quality problems, we will replace or return them unconditionally.
We can prepare sample orders. If the sample quantity is small and available in stock, we can provide them free of charge (with customer responsible for freight costs).
