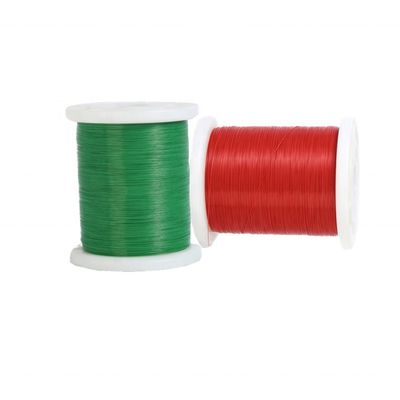

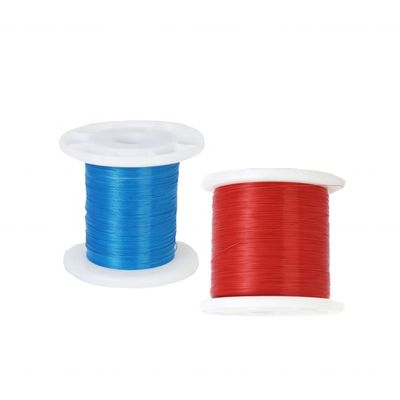

High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors

100
MOQ
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
도체 자료: SPC
단열재: ptfe
정격 전압: AC 220V
지휘자 유형: 좌초
와이어 게이지: 28AWG
작업 온도: -60 ~ + +250 ℃
핵심 번호: 단일 코어
패킹 길이: 305M/Roll
차폐 재료: 통조림 구리 와이어
지름: 0.08mm
색상 옵션: 11이지 색
도체 저항: 저항이 낮습니다
절연 두께: PTFE 필름
유연성: 좋은
무게: 빛
강조하다:

0.08mm PTFE SPC Wire

,

250 Degree Resistance PTFE Insulated Wire

,

11 Colors High Temperature Wire
기본 정보
원래 장소: 후난, 중국
브랜드 이름: Sanco cable
모델 번호: AFR-250
결제 및 배송 조건
제품 설명
High Temperature 0.08mm 28AWG PTFE SPC Wire
Product Description
High Temperature PTFE SPC Wire is an electrical wire insulated with PTFE film, offering exceptional resistance to high temperatures, chemicals, and excellent electrical insulation properties. Designed for demanding environments, this wire maintains performance in aerospace, automotive, and industrial applications where reliability is critical.
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 0
Specifications
Application Internal wiring for electronic equipment, electrical appliances, and instruments
Advantages
  • Small outer diameter and lightweight
  • Excellent flexibility and easy to weld
  • High temperature resistant and anti-aging
  • Anti-interference properties

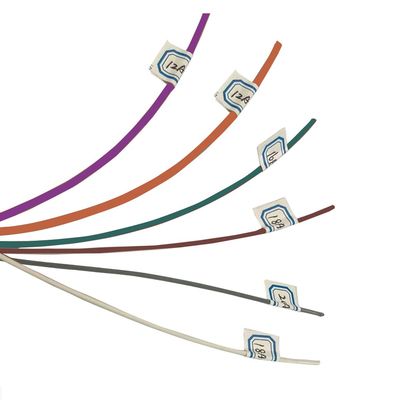

Available Colors Black, brown, red, orange, yellow, green, blue, purple, gray, white, and transparent
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 1
Conductor Silver plated copper wire
Insulation PTFE
Conductor Type Stranded
Working Temperature -60℃ to +250℃
Rated Voltage AC 220V
Wire Gauge 36awg~3/0awg
Core Number Single Core
Packing Length 305m/roll
Free Sample Yes
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 2
Company Profile
Shenzhou Special Cable is a leading manufacturer of custom wires and cables, specializing in high temperature wires (PTFE, PFA, FEP, ETFE), robot cables, crane cables, and drag chain cables. Our products serve aerospace, robotics, oil fields, wind power, rail locomotives, and electronics industries.
With over 20 years of experience, we've supplied products for China's National Rocket and Manned Space Engineering Programs. Our certifications include weapons equipment quality management system, ISO9001, and CCC.
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 3
Our Manufacturing Capabilities
  • 7,000+ sqm standard factory with 14 production lines
  • High quality imported raw materials for better chemical and heat resistance
  • Annealed pure copper conductors with low resistance
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 4
Quality Control
  • 1,500+ sqm professional testing laboratory
  • Advanced cable testing equipment
  • Professional QC team
  • Comprehensive pre-shipment testing including annealing, tensile, conductor resistance, and insulation thickness tests
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 5
Why Choose Us
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 6
20+ years of special cable R&D and manufacturing experience
Certified by CCC, Weapons and Equipment, and ISO9001
Trusted supplier for China's aerospace and military
Advanced cable testing equipment
Low MOQ for custom cables
Free samples and design services available
1-3 year warranty period
Packing & Delivery
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 7

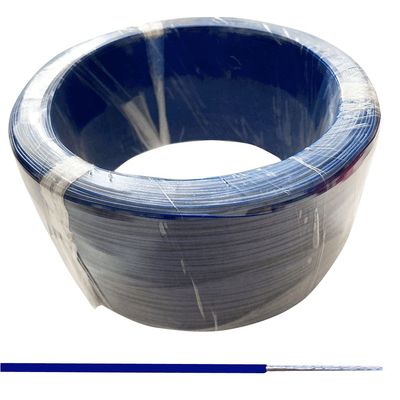

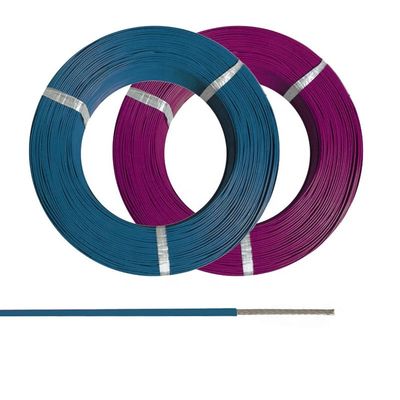

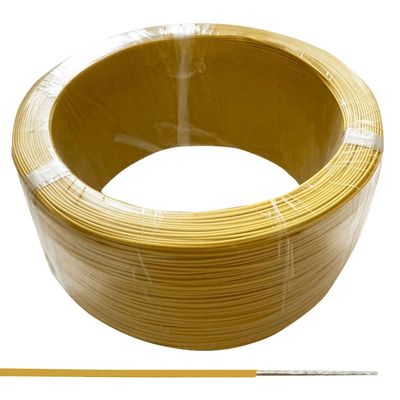

  • Packing in roll with carton boxes
  • Packing in spool with carton boxes
  • Packing with barrel or pallet
  • Packing in wooden tray
Contact Us
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 8
