0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances

100
MOQ

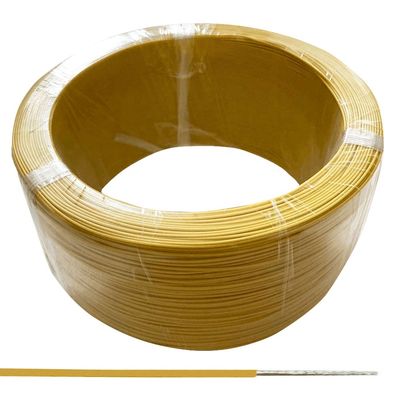

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
도체 자료: 은 도금
단열재: PTFE 절연
정격 전압: 220V
지휘자 유형: 좌초
와이어 게이지: 0.5MM2
차폐: 은 도금
작업 온도: -60 ~ + +250 ℃
정격 전압: AC 220V
와이어 게이지: 36awg ~ 3/0awg
핵심 번호: 단일 코어
패킹 길이: 305M/Roll
색상 옵션: 11이지 색
온도 저항: 250 급
도체 저항: 저항이 낮습니다
절연 두께: PTFE 필름
강조하다:

0.5mm2 PTFE Insulated Wire

,

220V Rated Voltage Silver Coated Wire

,

11 Colors High Temperature Wire
기본 정보
원래 장소: 후난, 중국
브랜드 이름: Sanco cable
모델 번호: AFR-250
결제 및 배송 조건
제품 설명
250 Degree 0.5mm² Silver Coating PTFE Insulation Wire
Product Overview
High Temperature Silver Coating PTFE Insulation Wire is an electrical wire insulated with PTFE film, offering exceptional resistance to high temperatures, chemicals, and electrical insulation properties. Ideal for demanding environments, this wire is commonly used in aerospace, automotive, and industrial applications where reliability and performance are critical.

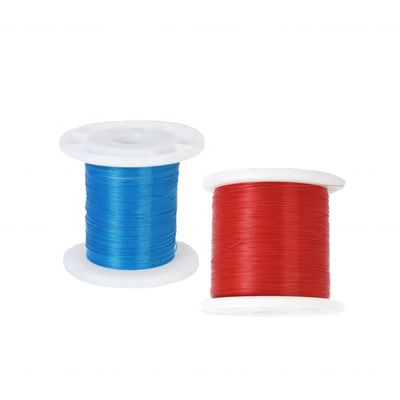

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances 0
Specifications
Application Internal wiring for electronic equipment, electrical appliances, and instruments
Conductor Silver coating copper wire
Insulation PTFE
Conductor Type Stranded
Working Temperature -60℃ to +250℃
Rated Voltage AC 220V
Wire Gauge 36awg~3/0awg
Core Number Single Core
Packing Length 305m/roll
Free Sample Yes
Key Advantages
  • Small outer diameter and lightweight design
  • Excellent flexibility and easy welding
  • High temperature resistance and anti-aging properties
  • Superior anti-interference performance
  • Available in multiple colors: black, brown, red, orange, yellow, green, blue, purple, gray, white, and transparent

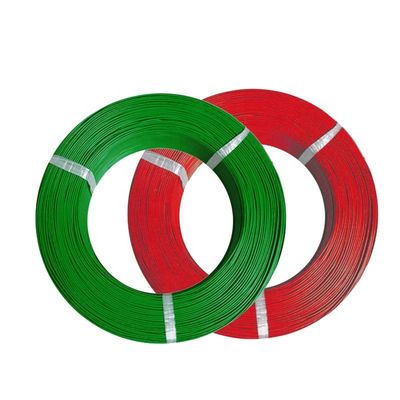

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances 1
Quality Assurance
  • Strict inspection before shipment including annealing test, tensile test, and conductor resistance test
  • 500+ sqm professional testing laboratory
  • Advanced cable testing equipment
  • Professional QC team

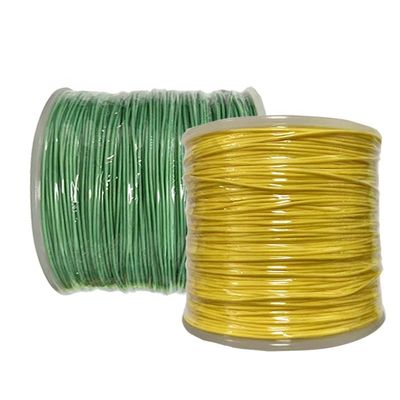

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances 2
Why Choose Our Product
  • 20+ years of special cable R&D and manufacturing experience
  • Certified by CCC, Weapons and Equipment, and ISO9001 systems
  • Supplier for China's aerospace and military programs
  • Low MOQ for custom cables
  • Free samples and design services available
  • 1-3 year warranty period

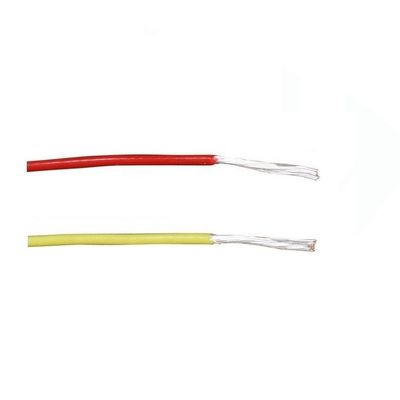

0.5mm2 220V Rated Voltage PTFE Insulated Wire with Silver Coating and 11 Colors for Electronic Appliances 3
